Overview

Browse through all of our modules, datasheets, and guides.

AND Gate
LogicAND Gate

Two-input boolean AND — high only when both inputs are high.

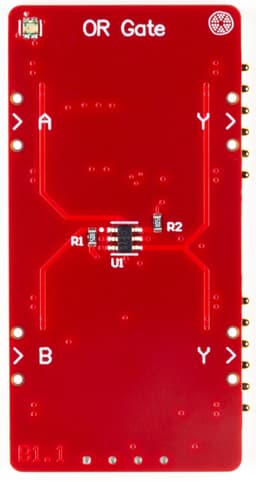

OR Gate
LogicOR Gate

Two-input boolean OR — high when any input is high.

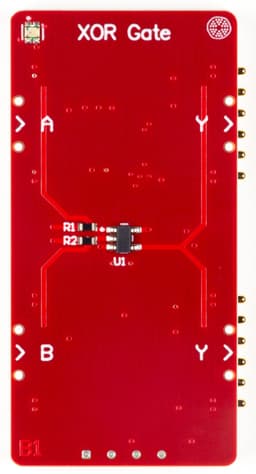

XOR Gate
LogicXOR Gate

Exclusive OR — high only when the two inputs differ.

NOT Gate
LogicNOT Gate

Single-input inverter that negates an incoming signal.

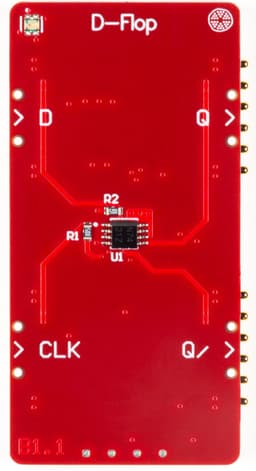

D Flip-Flop
LogicD Flip-Flop

Positive-edge D flip-flop for single-bit state storage.

Node Multiplier
UtilityNode Multiplier

Fans one signal out to multiple downstream nodes simultaneously.

Node Voltage
UtilityNode Voltage

Reads and displays live node voltage with a 12-bit ADC.

Push Button
UtilityPush Button

Debounced momentary push button for manual signal input.

Probe
UtilityProbe

Inline signal probe for real-time logic-state inspection.

RGB LED
UtilityRGB LED

Full-color status LED with PWM brightness control.

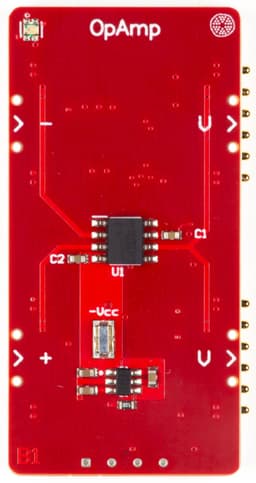

OpAmp
AnalogOpAmp

General-purpose op-amp module for analog signal conditioning.

How is this guide?

Master

The Master module is the central hub of the PomeLabs ecosystem, managing power distribution, signal transparency, and USB Type-C communication between modules and a host computer.
